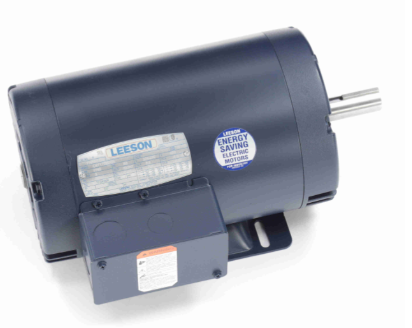

KEY FEATURES
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Otras opciones según código de modelo
En stockSe envía hoy
1 año de garantía contra defectos de fabricación.
| Phase: | 3 | Output HP: | 3 Hp |
| Output KW: | 2.2 kW | Voltage: | 208-230/460 V |
| Speed: | 1740 rpm | Service Factor: | 1.15 |
| Frame: | 56HZ | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 82.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 8.6/4.3 A | Power Factor: | 79 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | C | KVA Code: | J |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 1 |
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 0 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 145T | Overall Length: | 13.13 in |
| Frame Length: | 8.00 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.25 in | Assembly/Box Mounting: | F1 ONLY |
| UPC: | 691720340035 | Weight: | 47.00 LB |
| Packaged Length: | 19.50 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN | Country of Origin: | United States of America |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 29.00 | 322.0 | 0 | 3.00 | |||
| Locked-Rotor | 62.00 | 30.00 | 333.0 | 0 | 3.00 | |||
| Full Load | 8.60 | 9.00 | 100.0 | 0 | 3.00 | |||
| Break-Down | 0.00 | 35.70 | 397.0 | 0 | 3.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 2.43 | 2.68 | 3.06 | 3.71 | 4.29 | 5.08 | 5.92 |
| Rated Output (KW) | 0.19 | 0.81 | 1.42 | 2.05 | 2.70 | 3.37 | 4.01 |
| Efficiency (%) | 0.0 | 71.7 | 79.9 | 83.0 | 82.5 | 82.2 | 81.7 |
| Power Factor (%) | 10.0 | 38.2 | 58.2 | 69.3 | 79.0 | 83.3 | 84.9 |
| Speed (RPM) | 1,798 | 1,786 | 1,772 | 1,758 | 1,742 | 1,726 | 1,707 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 85.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 2.30 | 4.50 | 6.80 | 9.00 | 11.30 | 13.50 |
